REL-70-1004-CH
12Vdc Power Supply , Chassis , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$106.94
3
$103.75
10
$102.22
25
$98.99
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
5.8 Amps
Max Power:
69 Watts
Known Country of Origin:
USA
Features

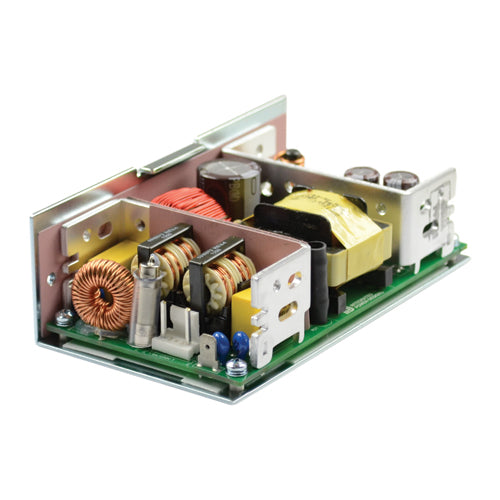

IPD REL-70-1004-CH medical power supply with chassis
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size dimensions: 2.62x4.79x1.48
Available in open frame and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
