Power Worth Searching For
REL-70-4007-CHCO
Quad Output Power Supply , Chassis & Cover , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
In Stock: 28 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$123.62
3
$119.93
10
$118.16
25
$115.52
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
2 Amps
Max Power:
70 Watts
Known Country of Origin:
USA
Features

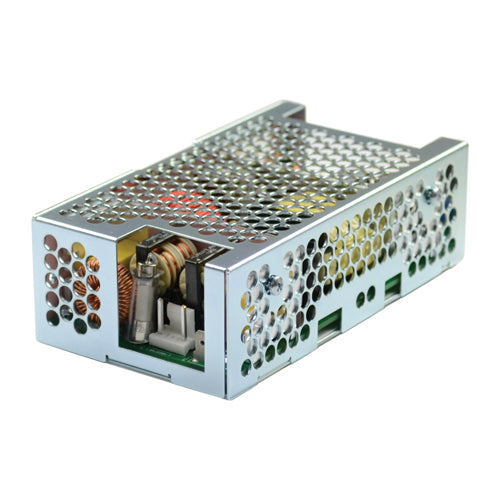

IPD REL-70-4007-CHCO enclosed medical power supply with chassis and cover
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size dimensions: 2.62x4.79x1.48
Available in open frame and chassis
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
REL-70-4007-CHCO
Quad Output Power Supply , Chassis & Cover , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
2 Amps
Max Power:
70 Watts
Known Country of Origin:
USA
Features
In Stock: 28 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$123.62
3
$119.93
10
$118.16
25
$115.52
REQUEST a QUOTE for higher qty discounts
