Power Worth Searching For
SRP-100-4003

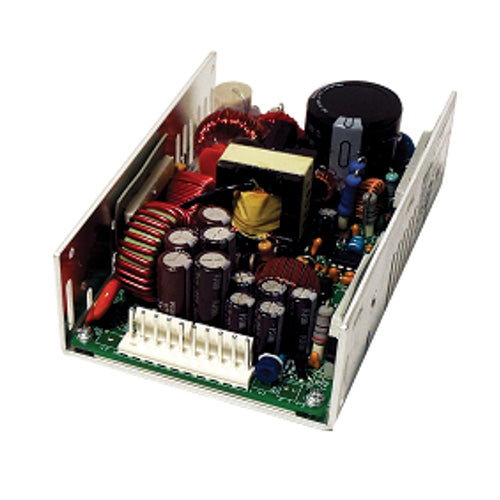

Quad Output Power Supply, ChassisManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$216.38
3
$199.74
10
$187.42
25
$176.55
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
1 Amps
Max Power:
100 Watts
Known Country of Origin:
USA
Features
IPD SRP-100-4003 power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Available with optional cover
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
