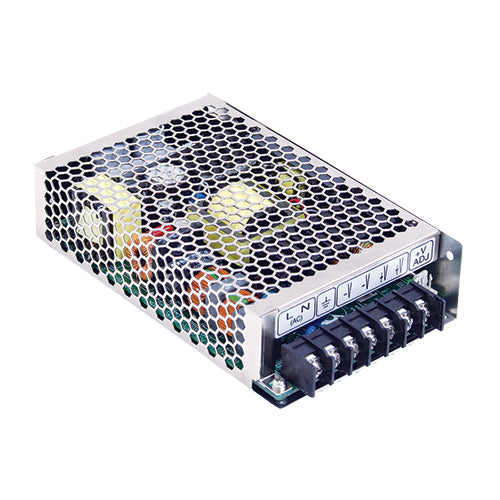

MSP-100-12
12Vdc 8.5A Medical Power SupplyManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
8.5 Amps
Max Power:
102 Watts
Known Country of Origin:
China
Features
Universal AC input: 85~264Vac
Operating temperature range: -40~+60°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOOP (means of operator protection)
Built-in constant current limiting circuit
Withstand 300Vac surge for 5 seconds
Low leakage current <300µA
Low no load power consumption <0.5W
Cooling by free air convection
Built-in remote On/Off control
Protections: short circuit / over load / over voltage / over temperature (optional)
Suitable applications include healthcare equipment requiring a high performance medical power supply.
MEAN WELL 3 year warranty
