MSP-200-36

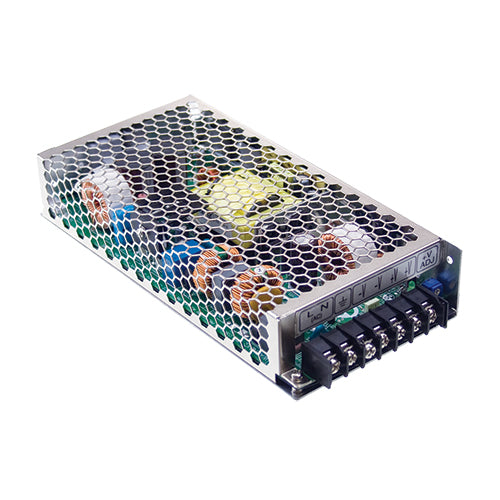

36Vdc 5.7A Medical Power SupplyManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$116.90
5
$111.41
10
$106.47
20
$103.39
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
5.7 Amps
Max Power:
205 Watts
Known Country of Origin:
China
Features
Universal AC input: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOOP (means of operator protection)
Built-in constant current limiting circuit
Withstand 300Vac surge for 5 seconds
Low leakage current <300µA
Low no load power consumption <0.5W
Cooling by free air convection
Built-in remote On/Off control
5V/0.3A standby output
Built-in remote sense function
Protections: short circuit / over load / over voltage / over temperature
Suitable applications include healthcare equipment requiring a high performance medical power supply.
MEAN WELL 5 year warranty
