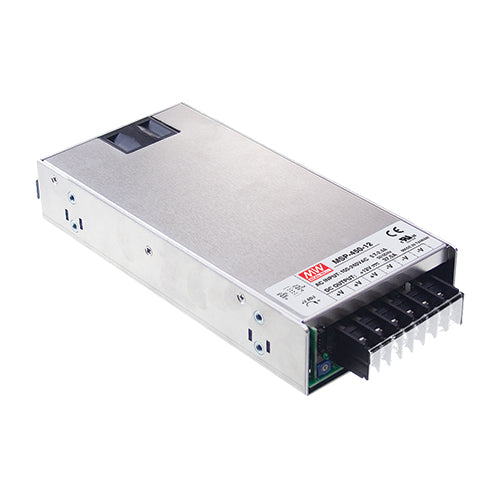

MSP-450-15
15Vdc 30A Medical Power SupplyManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$166.30
5
$158.40
10
$151.40
20
$147.00
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
30 Amps
Max Power:
450 Watts
Known Country of Origin:
Taiwan
Features
Universal AC input: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOOP (means of operator protection)
Built-in constant current limiting circuit
Withstand 300Vac surge for 5 seconds
Low leakage current <300µA
Low no load power consumption <0.6W
Cooling by built-in cooling fan On/Off control
Built-in remote On/Off control
5V/0.3A standby output
Built-in remote sense function
DC OK signal
Protections: short circuit / over load / over voltage / over temperature
Suitable applications include healthcare equipment requiring a high performance medical power supply.
MEAN WELL 5 year warranty
