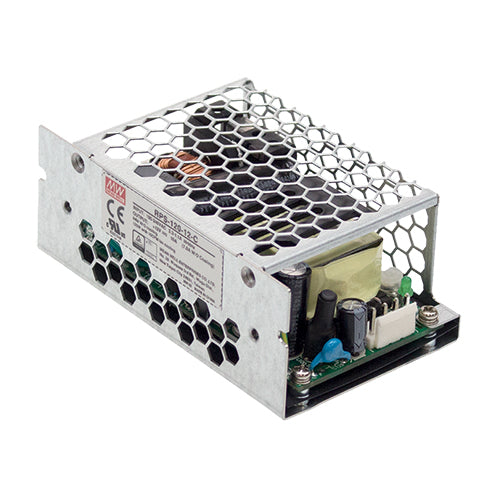

RPS-120-12-C
12Vdc 10A 12V Medical Power Supply Enclosed Type 12V 10AManufacturer: MEAN WELL
View Data Sheet
In Stock: 18 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
10 Amps
Max Power:
120 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, TUV EN60601-1,
IEC60601-1-1
Isolation level: 2xMOPP
Suitable for BF applications with appropriate system consideration
EMI Class B for both Class I (with FG) and Class II (without FG)
Low leakage current <190µA
No load power consumption <0.3W
Built-in 12V/0.5A fan supply
LED indicator for power On
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
