Power Worth Searching For
RPS-300-27-C

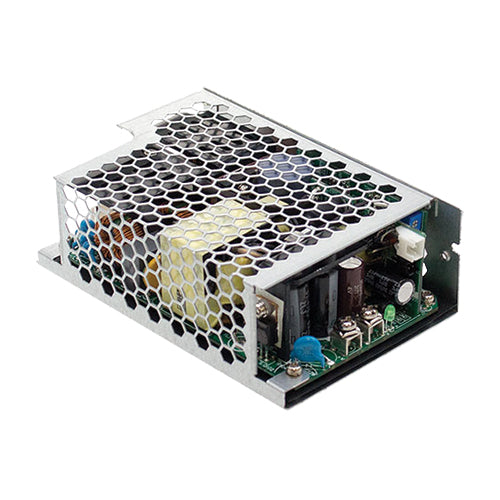

27Vdc 11.12A 27Vdc Medical Power Supply Enclosed Type 27V 11.12AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
27Vdc
Output Max Current:
11.12 Amps
Max Power:
300 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Operating temperature: -30~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP (means of patient protection)
Built-in PFC
Low leakage current <200µA
Power good and power fail signal output
Remote sense function
12V @ 0.5A auxiliary output
Standby 5V @ 1A with fan cooling, @ 0.6A without fan cooling
No load power consumption <0.5W by PS-ON control
Output power = 200W convection cooled or 300W with 20.5 CFM forced air cooling
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
