Power Worth Searching For
RPS-400-36-C

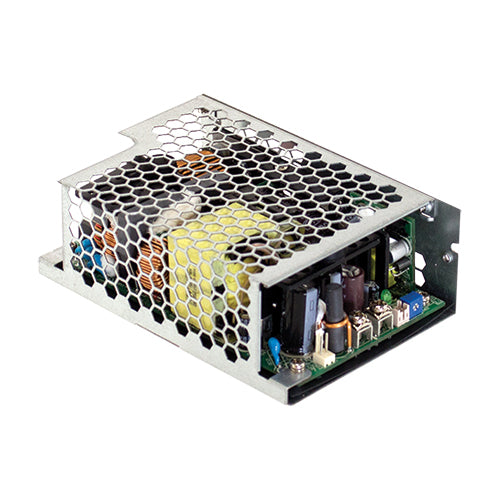

36Vdc 11.2A 36V Medical Power Supply Enclosed Type 36V 11.2AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$111.82
5
$106.47
10
$101.78
20
$98.84
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
11.2 Amps
Max Power:
403 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 medical safety approvals
2xMOPP
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in PFC
Low leakage current <250µA
Built-in 12V/0.5A fan supply
No load power consumption <0.5W by PS-ON control
LED power on indicator
Output power = 250W convection cooled or 400W with 25CFM forced air cooling
Power good and power fail signal output
Remote sense function
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
