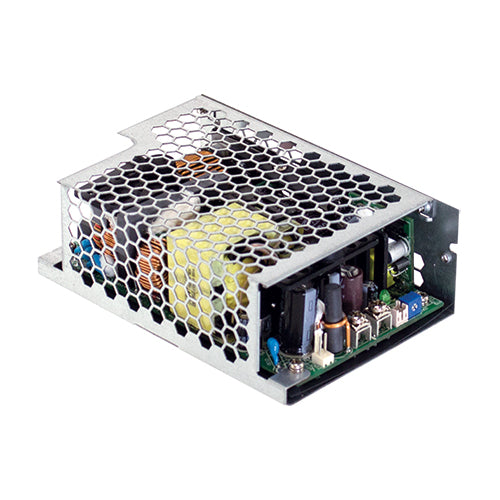

RPS-500-18-C
18Vdc 27.8A 500W Medical Power Supply Enclosed Type 18V, 27.8AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$132.15
5
$125.86
10
$120.38
20
$116.90
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
18Vdc
Output Max Current:
27.8 Amps
Max Power:
500 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C (with derating)
Safety approvals: ANSI/AAMI ES60601-1, EN/IEC60601-1
2xMOPP, BF rated
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in PFC
Low leakage current <220µA
Built-in 5Vdc standby output
Built-in 12V/0.5A fan supply
No load power consumption <0.5W by PS-ON control
LED indicator for power on
Output power = 310W convection cooled, 500W with 25CFM forced air cooling
Peak power 550W (3 seconds)
Power good/fail signals
Remote sense function
High efficiency
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
