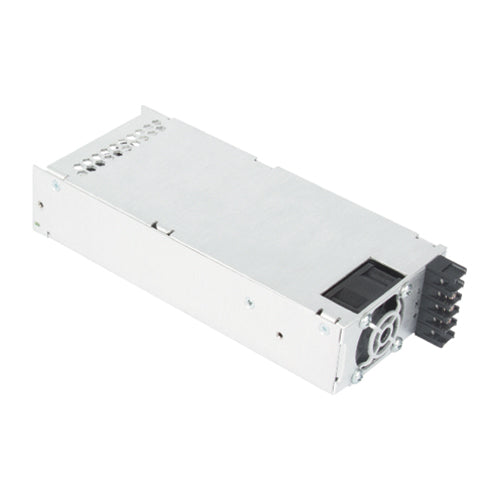

GCU500PS24-EF
24Vdc 20.8A, 24V Enclosed Type Power Supply, Medical & ITE Certifications, 24 Volts 20.8 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$258.02
5
$250.28
10
$242.54
25
$232.22
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
20.8 Amps
Max Power:
500 Watts
Known Country of Origin:
China
Features
XP Power GCU500PS24-EF enclosed medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current ≤270µA
Built-in fan
Built-in remote On/Off
Remote sense function
AC OK signal
Built-in 5V/0.2A standby
Built-in PFC
Operation up to 5000m altitude
High power density: 15W/in³
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
