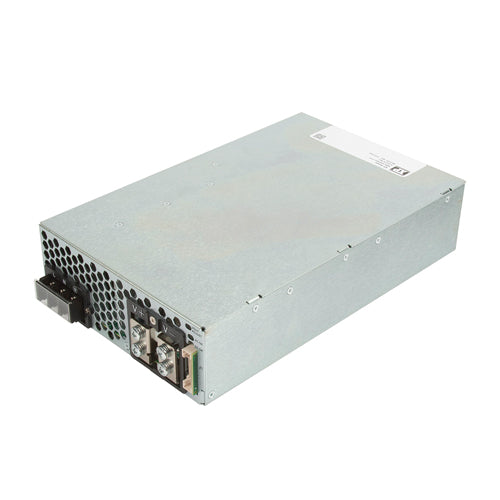

HPF3K0PS48
48Vdc 62.5A, 3kW, 48V, 62.5A, Enclosed Power Supply, Medical/ITE Certification, PMBusManufacturer: XP Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
62.5 Amps
Max Power:
3000 Watts
Known Country of Origin:
China
Features
3kW enclosed programmable AC/DC power supply
AC input range: 180~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 60950-1, UL 62368-1
SEMI F47
Current sharing up 5 units
Programmable output voltage (0-105%)
Programmable output current (0-110%)
Intelligent fan speed control
Built-in PFC
Built-in remote On/Off, remote sense
DC OK signal
PMBus digital power management protocol
Graphical User Interface (GUI)
Built-in 5V/2A standby output
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
