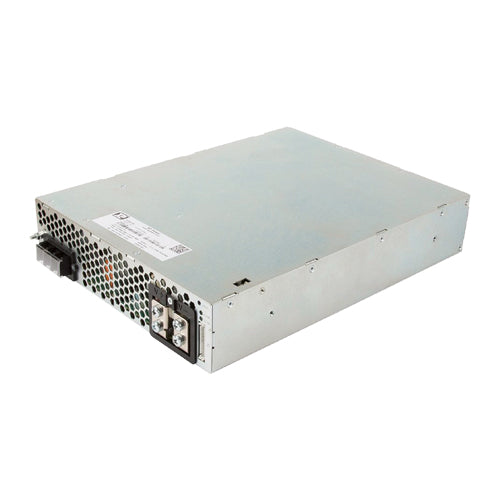

HPT5K0TS048-L
48Vdc 104A, Programmable Power Supply, Medical and ITE SafetyManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
180~528Vac Three Phase
Output Voltage:
48Vdc
Output Max Current:
104 Amps
Max Power:
5000 Watts
Known Country of Origin:
China
Features
5,000 watt programmable power supply
AC input range: 3 Phase 180~528Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 60950-1
SEMI F47
Current sharing up 5 units
Variable speed cooling fan
Built-in PFC
Built-in remote On/Off, Remote Sense
AC OK and DC OK signal
PMBus digital power management protocol
Adjustable output voltage (0~105%)
Programmable output voltage (0~110%)
Built-in 5V/2A standby output
Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
