Power Worth Searching For
HPT5K0TS100-L

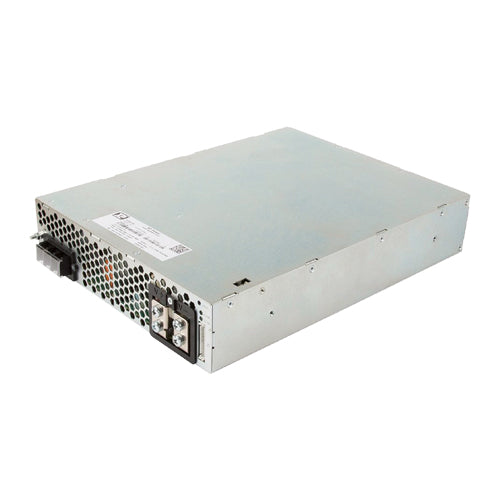

100Vdc 50A, Programmable Power Supply, Medical and ITE Safety, 100 Volts 50 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
180~528Vac Three Phase Input
Output Voltage:
100Vdc
Output Max Current:
50 Amps
Max Power:
5400 Watts
Known Country of Origin:
China
Features
XP Power HPT5K0TS100-L medical and industrial programmable power supply
AC input range: 3 Phase 180~528Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 60950-1
SEMI F47
Current sharing up 5 units
Low earth leakage current 3.3mA max
Variable speed cooling fan
Built-in PFC
Built-in remote On/Off
Remote sense
AC OK signal
DC OK signal
PMBus digital power management protocol
Adjustable output voltage (0~105%)
Programmable output voltage (0~110%), Built-in 5V/2A standby output
High power density: 15.38W/cubic inch, Operation up to 5000m altitude
XP Power 3 year warranty
