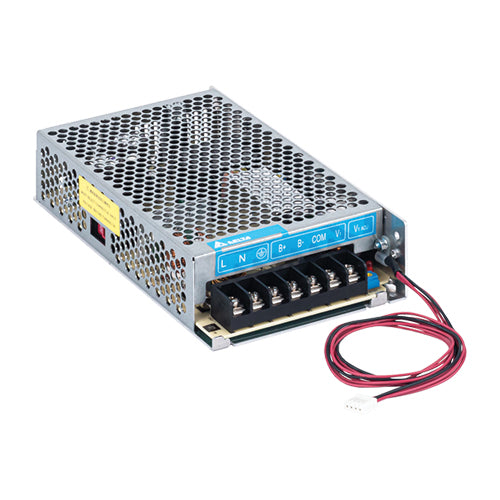

PMU-13V155WCCA
13.8Vdc 9.5A 13.8Vdc Power Supply Enclosed Type w-UPS Function 9.5 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
115/230Vac User Selectable
Output Voltage:
13.8Vdc
Output Max Current:
9.5 Amps
Max Power:
131.1 Watts
Known Country of Origin:
China
Features
Enclosed type power supply with battery charger (UPS function)
AC input range: 90-132 Vac / 180-264 Vac (selectable by switch)
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 60950-1, UL/cUL 62368-1 Listed
SELV
Built-in DC OK signal
LED indicator for DC OK
LED indicator for Battery Polarity Connection
Withstands 5G vibration
Operation up to 5000m altitude
Leakage current <0.5mA
SELV
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 2 year warranty
