Power Worth Searching For
GRN-200-2004-CH
Dual Output Power Supply , Medical Power Supply , ChassisManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$201.43
3
$195.42
10
$192.54
25
$184.84
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
15Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
5 Amps
Max Power:
200 Watts
Known Country of Origin:
USA
Features

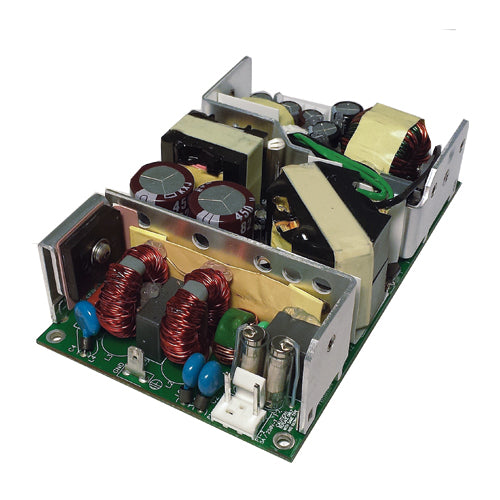

IPD GRN-200-2004-CH multiple output power supply with chassis
AC input range: 85~264Vac
Operating temperature: -20~+70°C
IEC 60950-1 ITE certification
IEC 60601-1 medical certification 3rd edition and IEC 60601-1-2 4th edition EMC
2 x MOPP - (means of patient protection - primary to secondary)
<300mW no load input power
Dual, triple or quad outputs
Made in USA - IPD GRN-200-CH multiple output power supplies are manufactured in the US
Available open frame or with optional chassis and cover
Integrated Power Designs 3 year warranty
