Power Worth Searching For
GRN-200-3001-FN

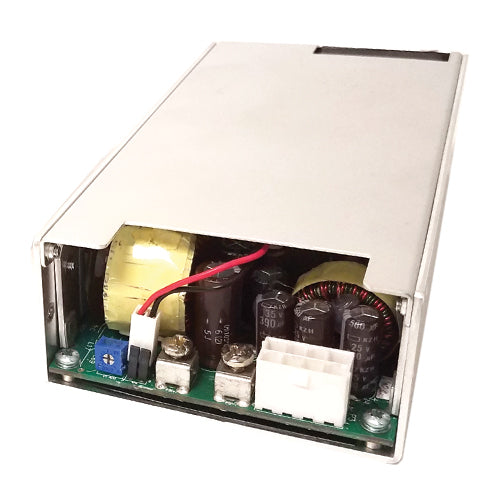

Triple Output Power Supply , Medical Power Supply , Enclosed with Rear FanManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$256.88
3
$249.21
10
$245.54
25
$234.49
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
30 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
6 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
2 Amps
Max Power:
200 Watts
Known Country of Origin:
USA
Features
IPD GRN-200-3001-FN multiple output enclosed power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1
Medical safety certification: Meets EMC emission immunity to IEC 60601-1-2 4th edition
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810G
Built-in PFC
Built-in fan
Shock & vibration proof
Low earth leakage current <300µA
Factory configurable output voltage combinations
Adjustable output voltage
Remote sense function
Compact size: 6x3.2x1.6
Protections: overvoltage / overload
Integrated Power Designs 3 year warranty
