NXT-400M-4004-04-CHCO

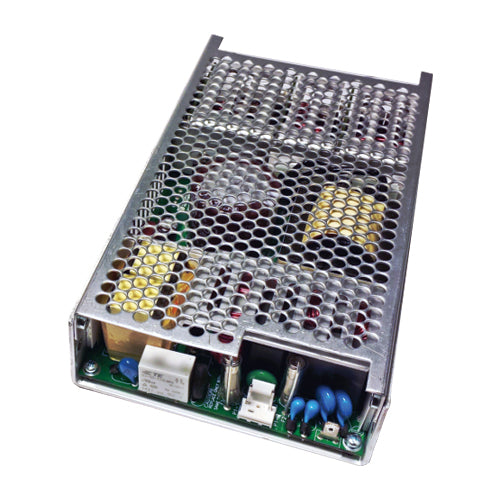

Quad Output Power Supply , Medical & ITE Safety Approvals, Chassis & CoverManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$408.37
3
$396.18
10
$390.35
25
$362.54
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
50 Amps
Output Voltage #2:
28Vdc
Output #2 Max Current:
5 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
5 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
5 Amps
Max Power:
360 Watts
Known Country of Origin:
USA
Features
IPD NXT-400M-4004-04-CHCO multiple output power supply with chassis and cover
AC input voltage range: 85~264Vac
Operating temperature range: -20~+70°C
IEC 60601-1 3rd ed. Medical Certification
IEC 60950-1 ITE Certification
IEC 62368-1 Certification
IEC 60601-1-2 4th ed. EMC
2 x MOPP - (means of patient protection - primary to secondary)
Factory configurable output voltage combinations
All DC output voltages are regulated and adjustable
Built-in active PFC
High efficiency
No load input power: <300mW
<300µA earth leakage current
Compact size: 4x7x1.5
Max power ratings achieved by providing 300LFM of forced air cooling
Remote sense, Floating or common output returns
Optional remote inhibit/enable
Optional standby output: 5V/2A, Optional power fail warning
