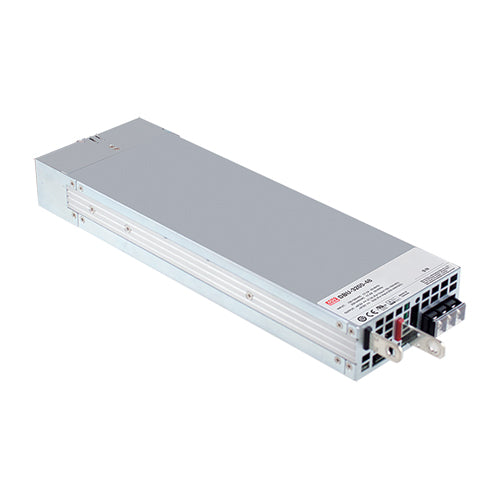

DBU-3200-24
28.8Vdc 110A 24Vdc Battery Charger Programmable Charging Curves 330~1000Ah BatteriesManufacturer: MEAN WELL
View Data Sheet
In Stock: 13 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$691.62
5
$672.67
10
$646.12
20
$629.56
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
28.8Vdc
Max Charge Current:
110 Amps
Max Power:
3168 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 90~264Vac
Operating temperature range: -30~+70°C (with derating)
Safety approvals: UL/EN 62368-1
Built-in 3 stage and programmable charging curves
Built-in I2C interface, PMBUS protocol
Active PFC
High efficiency
Remote On/Off
DC OK signal
12V @ 0.8A auxiliary output
5V @ 0.3A stand-by power
Cooling by built-in thermal controlled DC fans
Programmable output voltage & current
Built-in OR-ing FET
Current sharing up to 6,400W or N+1 redundancy
Protections: battery under voltage / battery no connection / short circuit / over voltage / over temperature
MEAN WELL 5 year warranty
DBU-3200-24
28.8Vdc 110A 24Vdc Battery Charger Programmable Charging Curves 330~1000Ah BatteriesManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
28.8Vdc
Max Charge Current:
110 Amps
Max Power:
3168 Watts
Known Country of Origin:
Taiwan
Features
In Stock: 13 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$691.62
5
$672.67
10
$646.12
20
$629.56
REQUEST a QUOTE for higher qty discounts
