Power Worth Searching For
LSP-160R-3.3T

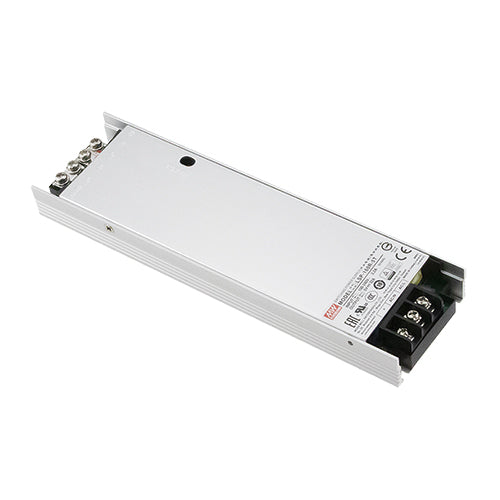

Slim Type PFC Power Supply O/P 3.3V/32A DC OK, Current SharingManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~264Vac
Output Voltage:
3.3Vdc
Output Max Current:
40 Amps
Max Power:
132 Watts
Known Country of Origin:
China
Features
Operating temperature: -30~+70°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Built-in PFC
Fanless power supply
Convection cooled
Low leakage current <750µA
Withstands 300Vac surge input for 5 seconds
1+1 redundancy function
LSP-160R-3.3T
Slim Type PFC Power Supply O/P 3.3V/32A DC OK, Current SharingManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
100~264Vac
Output Voltage:
3.3Vdc
Output Max Current:
40 Amps
Max Power:
132 Watts
Known Country of Origin:
China
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
