TPI 180-153-M
53V 3.4A, 53 Volt Power Supply Enclosed Type, PFC 53 Volts 3.4 AmpsManufacturer: TRACO Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
53Vdc
Output Max Current:
3.4 Amps
Output Peak Current:
4.151 Amps
Max Power:
180 Watts
Known Country of Origin:
Taiwan
Features

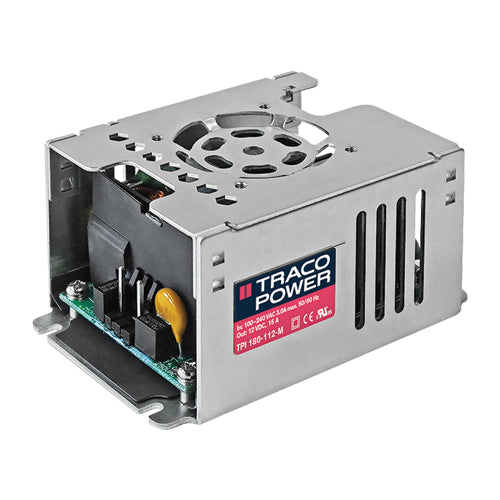

TRACO Power TPI 180-153-M enclosed type industrial AC/DC power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810F
Peak power 220W for 5 seconds
Adjustable output voltage
Withstands 5G vibration
High efficiency
Class I and class II prepared
Meets conducted EMI Class B
Built-in PFC
Low leakage current ≤300µA
No load power consumption ≤0.2W
Operation up to 5000m altitude
Protections: short circuit / overvoltage / over temperature
TRACO Power 3 year warranty
