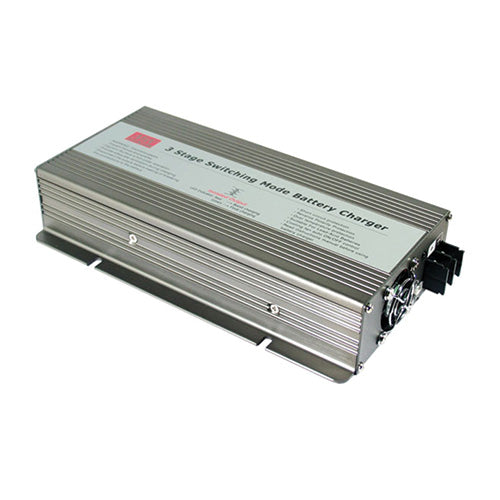

PB-360N-24
28.8Vdc 12.5A Battery Charger Without Passive PFCManufacturer: MEAN WELL
View Data Sheet
In Stock: 39 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
115/230Vac User Selectable
Output Charge Voltage:
28.8Vdc
Max Charge Current:
12.5 Amps
Max Power:
360 Watts
Known Country of Origin:
China
Features
AC input range: 90~132Vac / 180~264Vac selected by switch
Operating tempurature range: -20°~+60°C
2 color LED loading indicator
FAN on/off control (Depends on charging current)
3 stage charging
AC inlet: IEC 320-C14
Output Connector: Screw Terminal
On/Off Switch
Protections: battery reverse polarity, over voltage, over temperature, short circuit
Remote Control
MEAN WELL 3 year warranty
