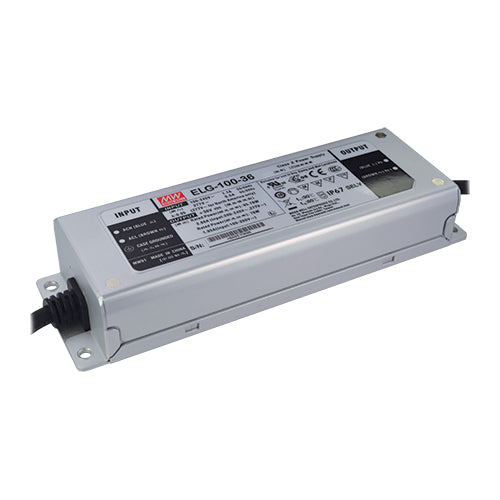

ELG-100-36A
36Vdc 2.66A 36V LED Power Supply, IP65 Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
In Stock: 27 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~305Vac
Output Voltage (CV mode):
36Vdc
Output Max Current (CV mode):
2.66 Amps
Output Current (CC mode):
2.66 Amps
Constant Current Operating Range:
18~36Vdc
Max Power:
95 Watts
Known Country of Origin:
China
Features
AC input range: 100~305Vac
Operating case temperature: -40~+90°C
UL8750 safety approved
Type HL for use in Class I, Division 2 hazardous (Classified) location
No load power consumption <0.5W
Built-in active PFC function
IP65, Io adjustable through built-in potentiometer
Durable metal enclosure
High efficiency
Protections: over current / short circuit / over voltage / over temperature
Applications: LED street lighting, LED high bay lighting and other indoor/outdoor lighting
MEAN WELL 5 year warranty
