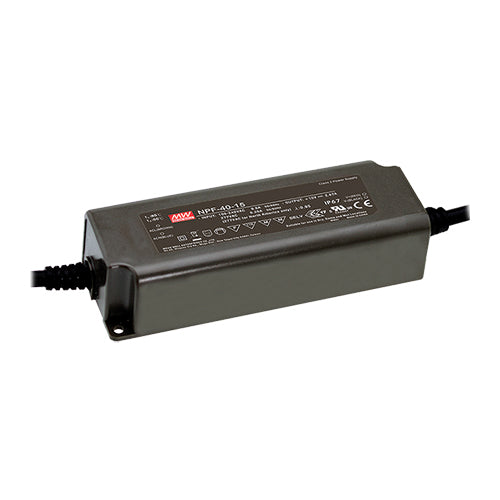

NPF-40-30
30Vdc Class 2 LED Power Supply IP67, Class II, PFC 30V 1.34AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
30Vdc
Output Max Current (CV mode):
1.34 Amps
Output Current (CC mode):
1.34 Amps
Constant Current Operating Range:
18~30Vdc
Max Power:
40 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Operating temperature range: -40~+70°C
UL8750 Type HL for use in Class I, Division 2 hazardous (Classified) location
Class 2 power unit
Class II
Built-in active PFC function
High efficiency
No load power consumption <0.15W
IP67, plastic enclosure: fully isolated with 94V-0 fire protection level
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 5 year warranty
