PLC-100-27

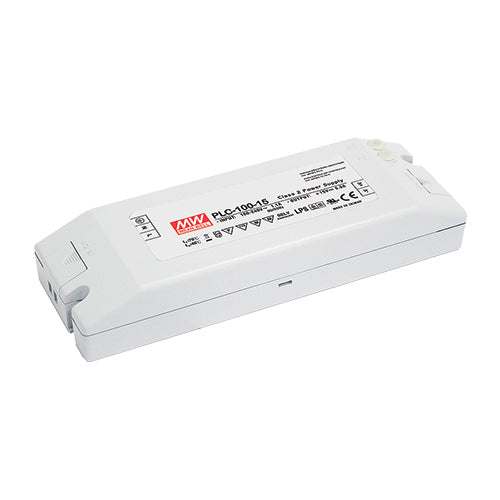

27V3.55A 27Vdc LED Power Supply UL1310 Class 2 Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage (CV mode):
27Vdc
Output Max Current (CV mode):
3.55 Amps
Output Current (CC mode):
3.55 Amps
Constant Current Operating Range:
20.25~27Vdc
Max Power:
95 Watts
Known Country of Origin:
China
Features
AC input: 90~264Vac
Operating temperature: -30~+50°C
UL1310 Class 2, LPS, SELV
Cooling by free air convection
Adjustable output voltage and constant current output level via potentiometers
Built-in active PFC
High efficiency
Fully insulated plastic case with terminal block for I/O connection
Protections: short circuit / over temperature / over current / over voltage
MEAN WELL 2 year warranty
