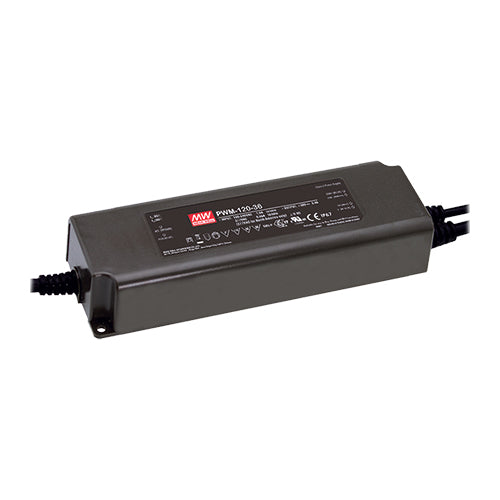

PWM-120-24
24Vdc 5A 24V Dimmable CV LED Driver 0~10Vdc, 10V PWM or Resistance IP67, Class II, PFCManufacturer: MEAN WELL
View Data Sheet
In Stock: 14 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage:
24Vdc
Output Max Current:
5 Amps
Max Power:
120 Watts
Known Country of Origin:
China
Features
3 in 1 dimming with 0~100% dimming range (0~10Vdc dimmer, 10V PWM or resistor)
AC input: 90~305VAC
Operating case temperature: -40~+90°C
UL8750 LED driver
Type HL for use in Class I, Division 2 hazardous (Classified) location
Built in active PFC function, THD <20%
Class II AC Input (two wires-no FG connection)
IP67 94V-0 flame retardant plastic case
No load power consumption < 0.5W
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
