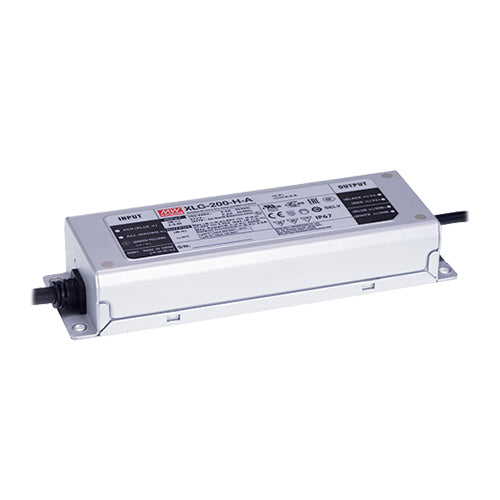

XLG-200-24-A
24Vdc 8.3A, CV/CC Mode LED Driver Adjustable Output Current IP67, Type HL, 200 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~305Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
8.3 Amps
Output Current (CC mode):
8.3 Amps
Constant Current Operating Range:
16.8~24Vdc
Max Power:
199 Watts
Known Country of Origin:
Philippines
Features
AC input range: 100~305Vac
Working case temperature: -40~+90°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
IP67, durable metal enclosure
Built-in PFC
High efficiency
Withstands 5G vibration
No load power consumption: <0.5W
Output current level adjustable through internal potentiometer
Surge protection: 4kV (line-line), 6kV (line-earth)
Protections: short circuit / over voltage / over temperature / over power
MEAN WELL 5 year warranty
