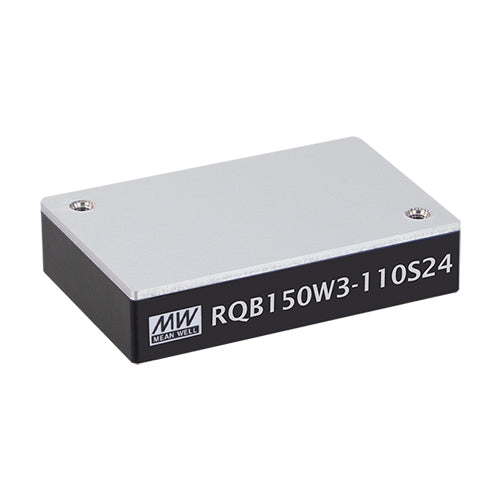

RQB150W3-110S12
150W I/P: 60-160VDC; O/P: 12V@12.5A DC/DC Converter, 1/4 Brick, EN 50155 Railway, 3:1 InputManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$115.92
10
$114.39
25
$112.91
50
$111.46
100
$108.68
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
60~160Vdc
Output Voltage:
12Vdc
Output Max Current:
12.5 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features
Quarter brick railway DC/DC converter
Ultra-wide 3:1 input range (60~160Vdc)
Operating temperature range: -40~+90°C
I/O isolation: 3000Vdc
Industrial safety certification: IEC 62368-1, UL 62368-1
Compliance to EN 50155 railway standard
Compliance to EN 61373 for shock & vibration
Remote On/Off
Remote sense function
Trimming output ±10%
Protections: short circuit (continuous, automatic recovery) / overload / overvoltage / over temperature / input under voltage lockout
MEAN WELL 3 year warranty
