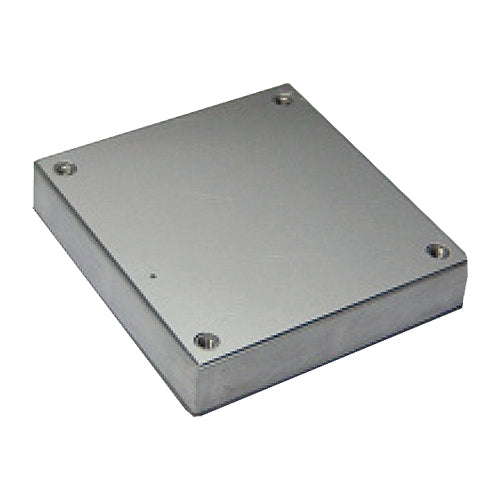

TEP 160-4812WIR
12Vdc 13A, DC/DC Converter Half Brick Package, Railway Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
Factory Stock: 45 i If factory stock is available, we can typically ship that additional stock from the factory to you within two weeks. Contact us to confirm timing for your quantity.
Quantity
Unit Price
1
$263.34
5
$238.67
10
$220.32
25
$204.07
Click for Quote for higher qty discounts
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
12Vdc
Output Max Current:
13 Amps
Max Power:
156 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEP 160-4812WIR half brick DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C
Safety approvals: UL 60950-1 2nd edition an IEC/EN 60950-1
No minimum load required
EN 50155 approval for railway applications
No minimum load
Soft start
Adjustable output voltage +10/-20%
Sense line
High efficiency
Remote On/Off input
Protections: short circuit / over voltage / over temperature
Reverse input voltage protection
Optional heat sink
Optional as chassis mount models with screw terminal block and EMI Filter
TRACO Power 3 year warranty
