TEP 160-4815WIR
24Vdc 6.5A, DC/DC Converter Half Brick Package, Railway Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$284.78
5
$257.36
10
$237.58
25
$220.05
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
24Vdc
Output Max Current:
6.5 Amps
Max Power:
156 Watts
Known Country of Origin:
Taiwan
Features

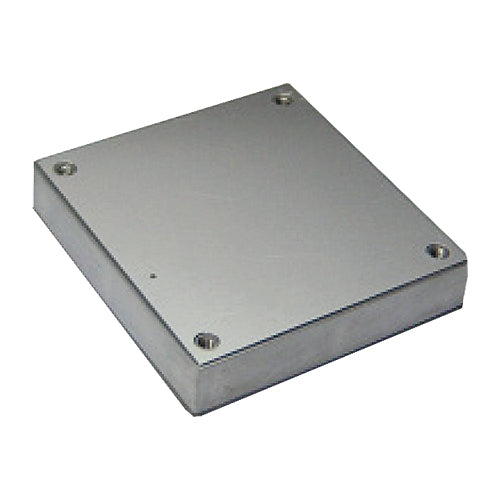

TRACO Power TEP 160-4815WIR half brick DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C
Safety approvals: UL 60950-1 2nd edition an IEC/EN 60950-1
No minimum load required
EN 50155 approval for railway applications
No minimum load
Soft start
Adjustable output voltage +10/-20%
Sense line
High efficiency
Remote On/Off input
Protections: short circuit / over voltage / over temperature
Reverse input voltage protection
Optional heat sink
Optional as chassis mount models with screw terminal block and EMI Filter
TRACO Power 3 year warranty
