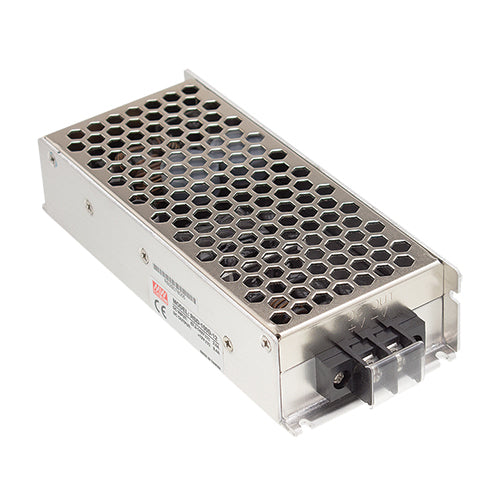

RSD-100B-5
14.4-33.6VDC O/P +5V20A, DC/DC Converter EN50155 Railway Standard, 100 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 102 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
16.8~31.2Vdc [14.4~33.6 1sec]
Output Voltage:
5Vdc
Output Max Current:
20 Amps
Max Power:
100 Watts
Known Country of Origin:
China
Features
Wide 2:1 input range
Operating temperature: -40~+70°C
4000Vdc I/O isolation
1U low profile
High reliability: using 105°C long life electrolytic capacitors
5G vibration resistance for vehicle applications
LED indicator for power On
Built-in constant current limiting circuit
Over load protection type: constant current limiting
Protections: short circuit / over load / over voltage / over temperature / input reverse polarity
MEAN WELL 3 year warranty
