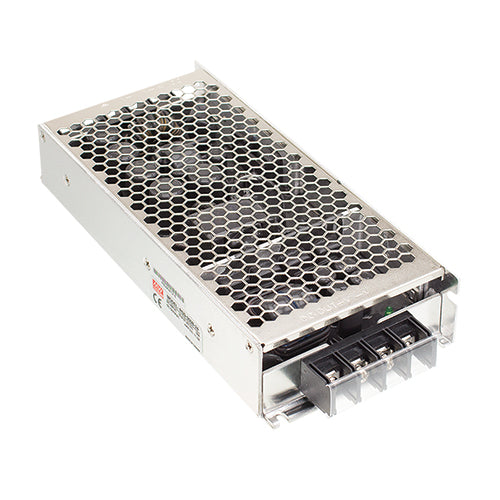

RSD-300C-48
28.8-67.2VDC O/P +48V6.3A, DC/DC Converter EN50155 Railway Standard Low Profile, 300 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$180.96
5
$172.40
10
$164.78
20
$159.97
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
33.6~62.4Vdc [28.8~67.2 1sec]
Output Voltage:
48Vdc
Output Max Current:
6.3 Amps
Max Power:
302 Watts
Known Country of Origin:
China
Features
Wide 2:1 input range
Operating temperature: -40~+70°C
4000Vdc I/O isolation
1U low profile
High reliability: using 105°C long life electrolytic capacitors
5G vibration resistance for vehicle applications
LED indicator for power On
Built-in constant current limiting circuit
Over load protection type: constant current limiting
Protections: short circuit / over load / over voltage / over temperature / input reverse polarity
MEAN WELL 3 year warranty
