Power Worth Searching For
RSD-300E-24

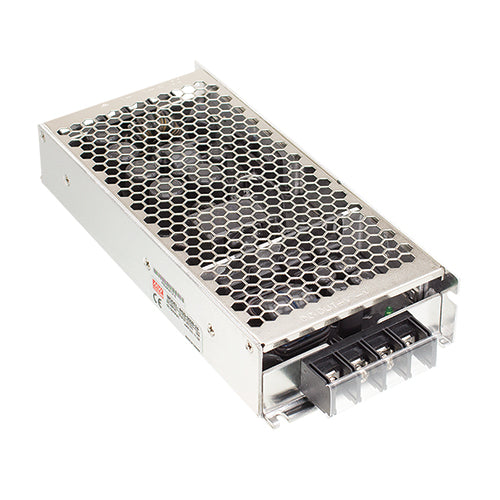

21.6-50.4VDC O/P +24V12.5A, DC/DC Converter EN50155 Railway Standard Low Profile, 300 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$180.96
5
$172.40
10
$164.78
20
$159.97
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
25.2~46.8Vdc (21.6~50.4 1sec)
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Max Power:
300 Watts
Known Country of Origin:
China
Features
Wide 2:1 input range
Operating temperature: -40~+70°C
4000Vdc I/O isolation
1U low profile
High reliability: using 105°C long life electrolytic capacitors
5G vibration resistance for vehicle applications
LED indicator for power On
Built-in constant current limiting circuit
Over load protection type: constant current limiting
Protections: short circuit / over load / over voltage / over temperature / input reverse polarity
MEAN WELL 3 year warranty
RSD-300E-24
21.6-50.4VDC O/P +24V12.5A, DC/DC Converter EN50155 Railway Standard Low Profile, 300 WattsManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
25.2~46.8Vdc (21.6~50.4 1sec)
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Max Power:
300 Watts
Known Country of Origin:
China
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$180.96
5
$172.40
10
$164.78
20
$159.97
REQUEST a QUOTE for higher qty discounts
