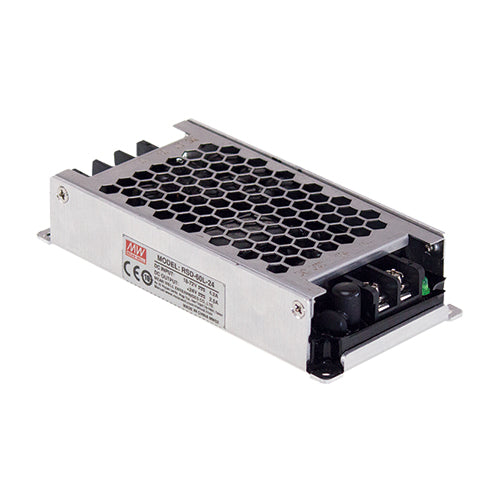

RSD-60H-24
40-160VDC O/P +24V2.5A, DC-DC Converter EN50155 Railway Standard Input Voltage 40~160Vdc, 60 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 13 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
40~160Vdc
Output Voltage:
24Vdc
Output Max Current:
2.5 Amps
Max Power:
60 Watts
Known Country of Origin:
China
Features
Ultra wide 4:1 input range
Operating temperature: -40~+70°C
Industrial safety certification: IEC 62368-1, UL 62368-1
4000Vdc I/O isolation
1U low profile
High reliability: using 105°C long life electrolytic capacitors
5G vibration resistance for vehicle applications
LED indicator for power On
Built-in constant current limiting circuit
Over load protection type: constant current limiting
Protections: short circuit / over load / over voltage / over temperature / input reverse polarity
MEAN WELL 3 year warranty
