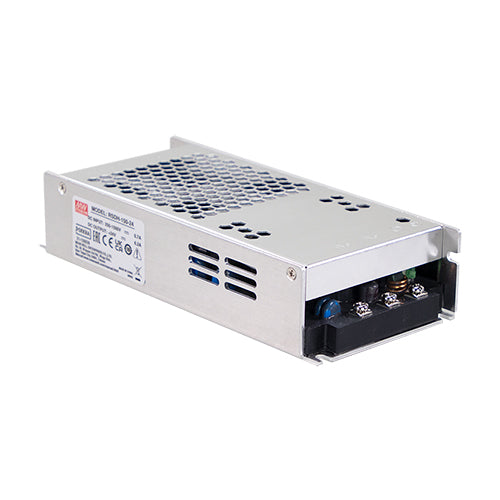

RSDH-150-24
250-1500VDC O/P +24V6.2A, 150W, 24Vdc 6.2A, DC/DC Converter, 6:1 Ultra-wide Input Range, 150 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
250~1500Vdc
Output Voltage:
24Vdc
Output Max Current:
6.2 Amps
Max Power:
150 Watts
Known Country of Origin:
China
Features
High input, enclosed type DC/DC converter
Ultra wide 6:1 input range
Operating temperature range: -40~+80°C
Industrial safety certification: IEC/EN 62109-1
I/O isolation: 4000Vac
Withstand 1700Vdc surge input for 10 seconds
1U low profile
Adjustable output voltage
Overvoltage category II
Operation up to 5,000 meters
Over load protection type: constant current limiting
Protections: short circuit / over load / over voltage / over temperature / input reverse polarity
MEAN WELL 3 year warranty
