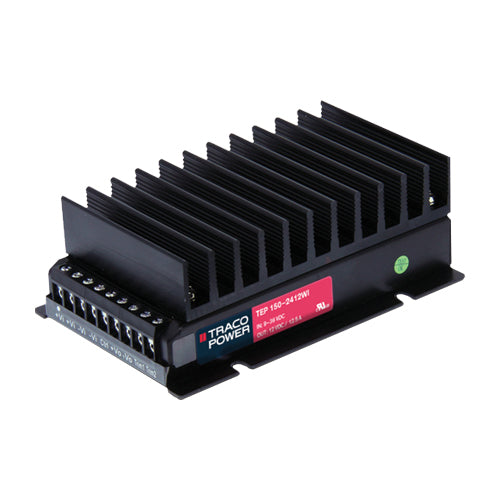

TEP 150-2412WI
12Vdc 12.5A, DC/DC Converter Screw Terminal, Railway Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
In Stock: 146 can ship now
Factory Stock: 104 i If factory stock is available, we can typically ship that additional stock from the factory to you within two weeks. Contact us to confirm timing for your quantity.
Quantity
Unit Price
1
$253.69
5
$230.10
10
$212.22
25
$196.58
Click for Quote for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
12Vdc
Output Max Current:
12.5 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEP 150-2412WI rugged DC/DC converter with shielded metal case and screw terminals
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C
I/O isolation 2250Vdc
EN 50155 approval for demanding applications such as railway and transportation
Constant current output characteristic for battery load applications
Easy chassis and wall mount
Remote On/Off
Reverse input voltage protection
Under voltage lock-out circuit
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
