Power Worth Searching For
TEP 150-2415WI-F
24Vdc 6.3A, DC/DC Converter, Railway Screw Terminal, Input Filter Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$377.21
5
$342.14
10
$315.57
25
$292.36
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
24Vdc
Output Max Current:
6.3 Amps
Max Power:
151.2 Watts
Known Country of Origin:
Taiwan
Features

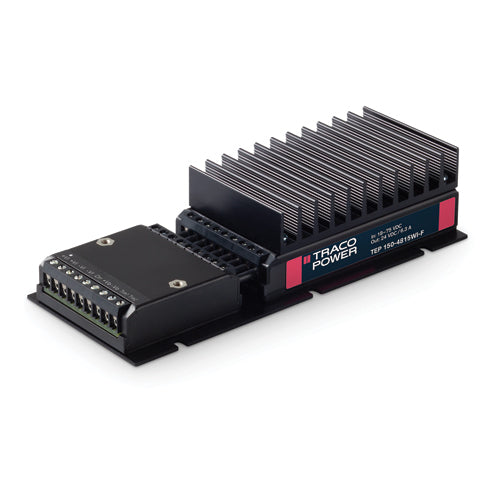

TRACO Power TEP 150-2415WI-F rugged DC/DC converter with shielded metal case and screw terminals
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C
Safety approvals: UL/cUL 60950-1 and IEC/EN 60950-1
I/O isolation 2250Vdc
EN 50155 approval for demanding applications such as railway and transportation
Input filter allows modules to meet EN55022 class B
Constant current output characteristic for battery load applications
Easy chassis and wall mount
Remote On/Off
Reverse input voltage protection
Under voltage lock-out circuit
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
