TEQ 160-4818WIR

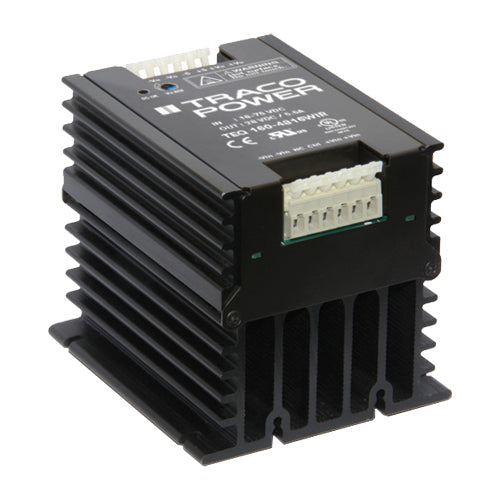

48Vdc 3.2A, DC/DC Converter Railway, High Performance Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$540.31
5
$439.69
10
$381.12
25
$359.56
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
19~75Vdc
Output Voltage:
48Vdc
Output Max Current:
3.2 Amps
Max Power:
153.6 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TEQ 160-4818WIR high performance power block DC/DC converter with excellent thermal convection
Ultra wide 4:1 input voltage range
Operating temperature: -40~+90°C
I/O isolation 2250Vdc
EN 50155 approval for demanding applications such as railway and transportation
Increased shock and vibration resistance
Input filter to meet EN 55022 class A
Input protection filter
High efficiency
Soft start
Remote sense
Remote On/Off
Adjustable output voltage via potentiometer
Under voltage lockout
Protection: over voltage / short circuit / over temperature
TRACO Power 3 year warranty
