TEQ 20-7222WIR
Dual O/P, DC/DC Converter Railway, High Performance Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$177.14
5
$161.64
10
$142.08
25
$138.67
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
43~160Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.833 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
0.833 Amps
Max Power:
20 Watts
Known Country of Origin:
Taiwan
Features

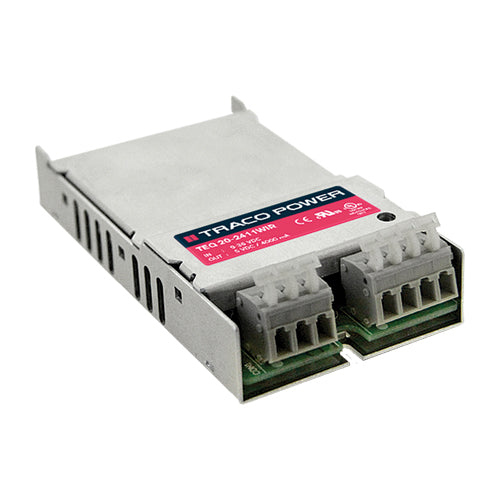

TRACO Power TEQ 20-7222WIR high performance chassis mount, convection cooled DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+93°C
EN 50155 approval for demanding applications such as railway and transportation
Input filter to meet EN 55022 class B
I/O isolation 3000Vdc
Output LED indicator
Under voltage lock-out circuit
Protections: over voltage / short circuit / over temperature
TRACO Power 3 year warranty
