TMDC 06-7225H
Dual O/P, DC/DC Converter Encapsulated Screw TerminalManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~160Vdc
Output Voltage #1:
24Vdc
Output #1 Max Current:
0.125 Amps
Output Voltage #2:
-24Vdc
Output #2 Max Current:
0.125 Amps
Max Power:
6 Watts
Known Country of Origin:
Taiwan
Features

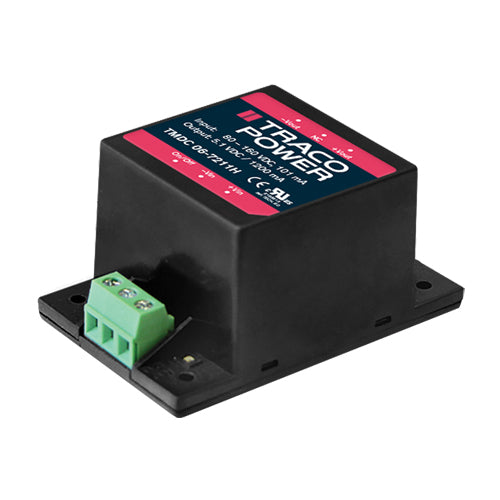

TRACO Power TMDC 06-7225H encapsulated with screw terminals DC/DC converter
Wide 2:1 input range
Operating temperature range: -40~+93°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Input filter meets EN 55032, class A
I/O isolation 3,000Vac
DC OK LED
Remote On/Off
Protections: short circuit / over load / under voltage
TRACO Power 3 year warranty
