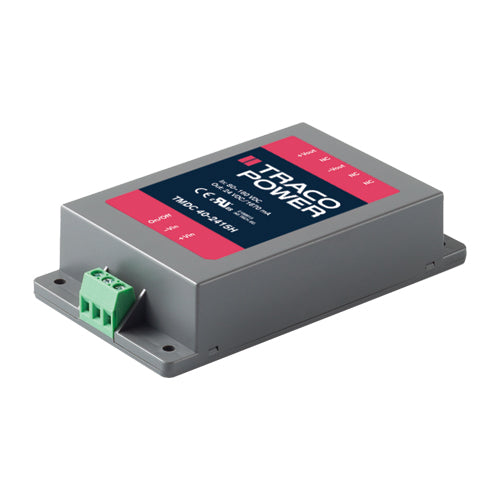

TMDC 40-7218H
48Vdc 0.84A, DC/DC Converter Encapsulated Screw TerminalManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$100.39
10
$91.66
25
$89.14
50
$84.24
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~160Vdc
Output Voltage:
48Vdc
Output Max Current:
0.84 Amps
Max Power:
40 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TMDC 40-7218H encapsulated with screw terminals DC/DC converter
Wide 2:1 input range
Operating temperature range: -40~+90°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Input filter meets EN 55032, class A
I/O isolation 3,000Vac
DC OK LED
Remote On/Off
Protections: short circuit / over load / under voltage
TRACO Power 3 year warranty
TMDC 40-7218H
48Vdc 0.84A, DC/DC Converter Encapsulated Screw TerminalManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
80~160Vdc
Output Voltage:
48Vdc
Output Max Current:
0.84 Amps
Max Power:
40 Watts
Known Country of Origin:
Taiwan
Features
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$100.39
10
$91.66
25
$89.14
50
$84.24
REQUEST a QUOTE for higher qty discounts
