Power Worth Searching For
DTJ2024D12
Dual O/P, DC/DC Converter, Chassis Mount, 4:1 InputManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$61.93
5
$60.07
10
$58.21
25
$55.74
100
$52.02
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.835 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
-0.835 Amps
Max Power:
20 Watts
Known Country of Origin:
Taiwan
Features

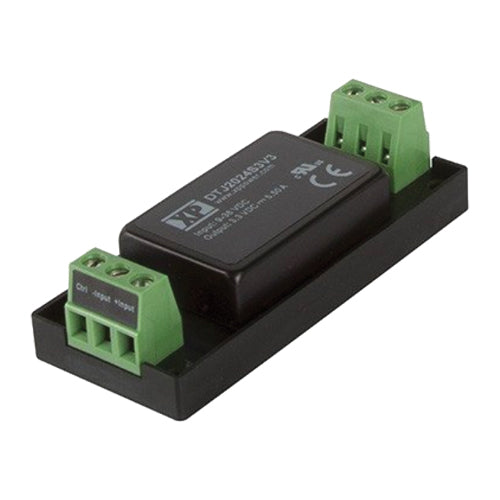

XP Power DTJ2024D12 industrial DC/DC converter
Ultra-wide 4:1 input range
Operating temperature range: -40~+100°C
Industrial safety certification: UL 62368-1, UL 60950-1
Input filter meets EN 55032 class A
I/O isolation: 3000Vdc
No minimum load required
Remote On/Off
DC OK LED indicator
Output voltage trim function (single output only)
Fully regulated output
Operation up to 5000m altitude
Protections: short circuit / overload / overvoltage / undervoltage-lockout / reverse polarity
XP Power 3 year warranty
