HVG-480-48B

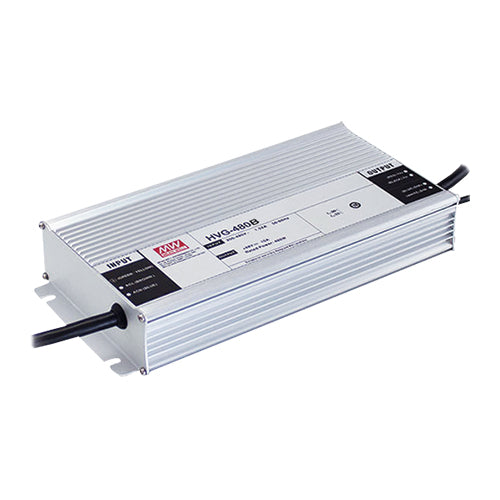

I/P 180~528Vac O/P 48V 10A Dimmable LED Driver, IP67 Wide Input Range: 180~528Vdc Operates: CV,CC ModeManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$240.22
5
$228.71
10
$218.68
20
$212.40
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
180~528Vac
Constant Current:
10000mA
Constant Current Operating Range:
24~48Vdc
Max Power:
480 Watts
Known Country of Origin:
China
Features
Wide range AC input: 180~528Vac
Operating case temperature: -40~+85°C
UL8750 safety approved
3 in 1 dimming function (dim to off): 0~10Vdc, 10V PWM signal and resistance
Built-in active PFC, THD <20%
Type HL for use in Class I, Divison 2 hazardous (Classified) location
High efficiency
Metal housing with Class I design
Protections: short circuit / over temperature / over current / over voltage
Commonly used in LED street lighting, horticulture, high bay, stadium, and parking lot LED applications
MEAN WELL 5 year warranty
