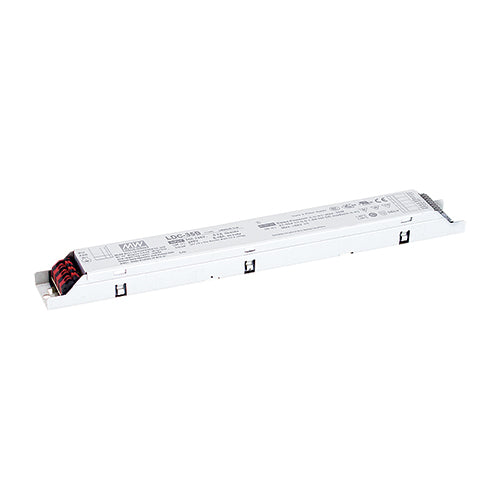

LDC-35B
27~56V 0.3~1A, Constant Power LED Driver Class 2, DimmableManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
180~295Vac
Constant Current Operating Range:
27~56Vdc
Adjustable Current Range:
0.625~1 Amps
Max Power:
35 Watts
Known Country of Origin:
China
Features
AC input range: 180~295Vac
Operating case temperature range: -25~+80°C
Safety approval: UL 8750
Built-in active PFC
Flicker free design
3 in 1 dimming function
Class 2 power unit
Metal case
SELV
No load power consumption <0.5W
Output current level can be preset
Low leakage current <0.75mA
Protections: short circuit / over voltage / over temperature
MEAN WELL 5 year warranty
