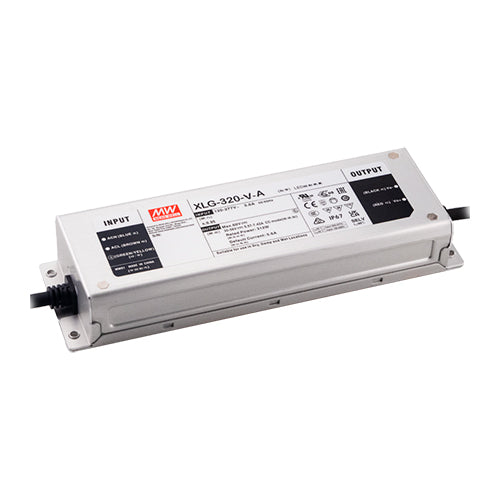

XLG-320-M-AB
74~148V 2800mA, Constant Power LED Driver PFC, Adjustable, Dimmable IP67, Type HL, 320 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 19 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~305Vac
Constant Current Operating Range:
74~148Vdc
Adjustable Current Range:
2.1~2.8 Amps
Max Power:
310.8 Watts
Known Country of Origin:
Philippines
Features
AC input range: 100~305Vac
Operating case temperature: -40~+85°C
Lighting safety certification: UL 8750
Type HL Class I, Div. 2 hazardous (classified) location
Built-in PFC
IP67
SELV (for -H & -V versions only)
Withstands 5G vibration
Meets 4kV and 6kV surge immunity levels
Output current level can be adjusted through internal potentiometer
3 in 1 dimming (0~10Vdc dimmer, 10V PWM signal, or resistor)
High efficiency
Protections: short circuit / overvoltage / overload / over temperature
MEAN WELL 5 year warranty
