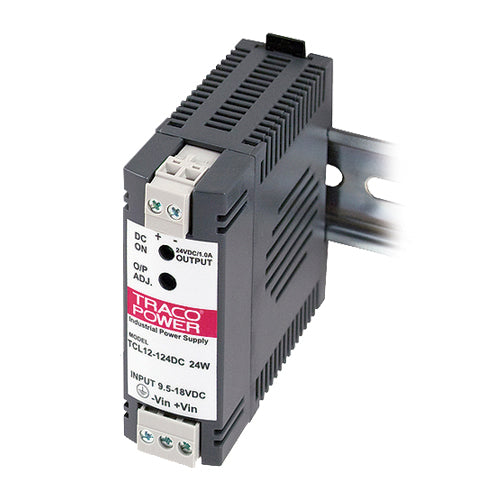

TCL 024-124 DC
24V DIN Rail DC/DC Converter UL 508 ListedManufacturer: TRACO Power
View Data Sheet
In Stock: 9 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
24Vdc
Output Max Current:
1 Amps
Max Power:
24 Watts
Features
TRACO Power TCL 024-124 DC DIN rail DC/DC converter
Wide DC input voltage range
Operating temperature range: -25~+70°C
UL508C listed, cUL/UL60950-1
I/O isolation: 1500Vdc
Adjustable output voltage
DC OK LED indicator
Plastic case (UL94V-0 rated)
Detachable screw terminals for easy connection
Standard Protections: reverse polarity / over voltage / short circuit
TRACO Power 3 year warranty
