DRP024V480W3BN

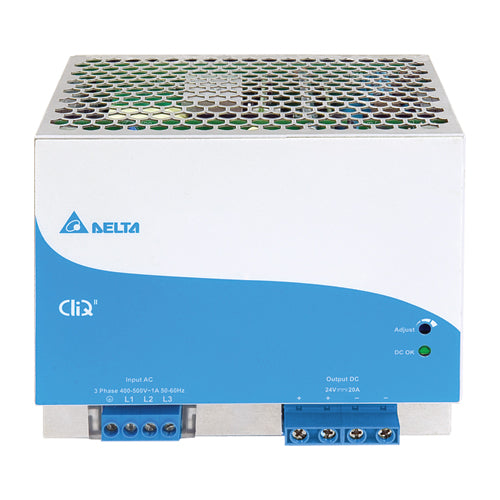

24Vdc 20A Power Supply DIN Rail 24 Volts 20 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$205.14
5
$202.29
10
$199.53
25
$196.83
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
360-600Vac Dual & Three Phase
Output Voltage:
24Vdc
Output Max Current:
20 Amps
Max Power:
480 Watts
Known Country of Origin:
India
Features
DIN rail power supply
AC input range: 2-Phase 360~600Vac or 3-Phase 320~600Vac
Operating temperature range: -25~+80°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, UL 508 Listed
UL508
IP20
Peak power 150% for 5 seconds
Built-in DC OK signal
LED indicator for DC OK
Adjustable output voltage
Conformal coating on PCBA to protect against common dust and pollutants
Leakage current <3.5mA
LED indicator for power On
Overvoltage Category III
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
