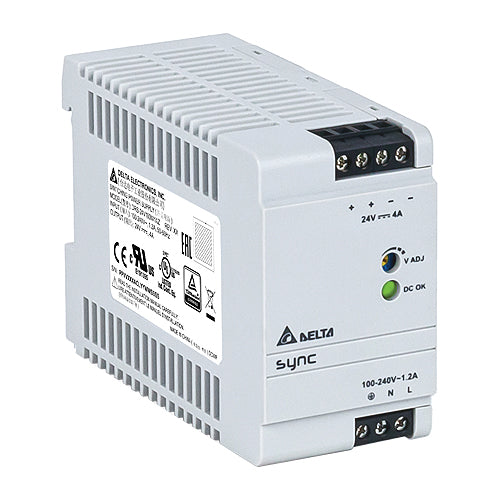

DRS-24V100W1NZ
24Vdc 3.8A Power Supply DIN Rail 24 Volts 3.8 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
3.8 Amps
Max Power:
91.2 Watts
Known Country of Origin:
China
Features
Ultra compact DIN rail power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, UL 60950-1, UL 508 Listed
Pass LPS
Class 2
LED indicator for DC OK
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
