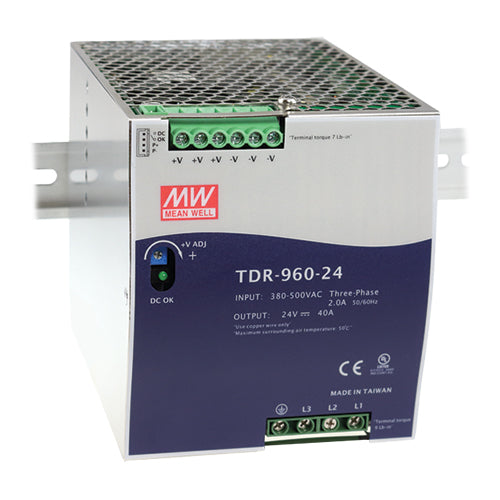

TDR-960-24
24 Volts 40A, 24Vdc DIN Rail Power Supply 3 Phase Wide Input Range 24V 40A, 960 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 41 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$297.16
5
$283.13
10
$270.60
20
$262.78
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
340~550Vac Three Phase
Output Voltage:
24Vdc
Output Max Current:
40 Amps
Max Power:
960 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 340~550Vac (3-phase input voltage)
Operating temperature range: -30~+70°C
Industrial safety certification: IEC 62368-1
UL508 listed (industrial control equipment)
High efficiency
Built-in DC OK relay contact and constant current limiting
Current sharing up to 4 TDR-960, 3840W (3+1)
Installs on DIN rail TS35 / 7.5 or 15
Standard protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
