Power Worth Searching For
TBLC 15-124

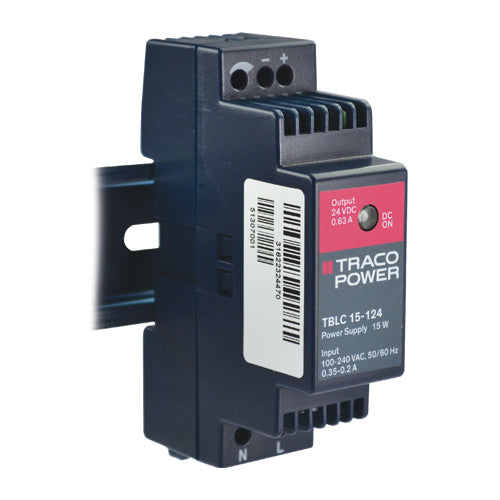

24Vdc 0.63A, 24 Volt DIN Rail Power Supply UL60950-1, UL508, UL1310 Class II, NEC Class 2Manufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
0.63 Amps
Max Power:
15 Watts
Known Country of Origin:
China
Features
TRACO Power TBLC 15-124 low profile DIN rail power supply
AC input range: 85~264Vac
Operating temperature range: -25~+70°C
Safety approvals: UL 60950-1, UL 508 listed, UL1310 NEC Class 2
Class II
Low output ripples and spikes
Adjustable output voltage
DC-OK indicator
Protections: short circuit / over load / over voltage
Mountable in flat racks due to their small depth dimension
TRACO Power 3 year warranty
